MY-Elegance S - Electric family boat
Length (m): 7,1 m
The MY-Elegance S is an electric day cruiser with up to 19 km/h. Range of up to 50 kilometers. Individual design.
Performance
Engine type
Properties MY-Elegance S
Performance
20 kW
Engine type
Inboard engine
Motor
KrÀutler
Top speed
20 km/h
Travel time at maximum speed
1 h
Travel speed
10 km/h
Travel time at cruising speed
5 h
Range at cruising speed
50 km
Capacity
20 kWh
voltage
48 V
Battery technology
Lithium-ion
Length (m)
7.1 m
width
2.34 m
draft
0.7 m
weight
1100 kg
max. load capacity
1100 kg
people
9
color
white
Material
GRP
CE category
D / C
anchor
No
App
No
sound system
No
cushion
individual
Interior
individual
-
Thanks to good hydrodynamics, the boat accelerates exceptionally quickly
-
The low center of gravity of the batteries provides a light and stable driving experience
-
Enormous amount of space for up to 9 people
-
Motorization from 4 to 15 kW and a lithium battery between 8 and 20 kWh.
MY-Elegance S Driving Characteristics
The personality of MY-Elegance S consists of many facets. The MY-Elégance offers plenty of space, high-quality workmanship and exclusive comfort equipment on request. The layout of the electric boat with seating and lying areas can be individually designed and leaves maximum space for your ideas. The spacious lying area offers plenty of space for sunbathing and relaxing.

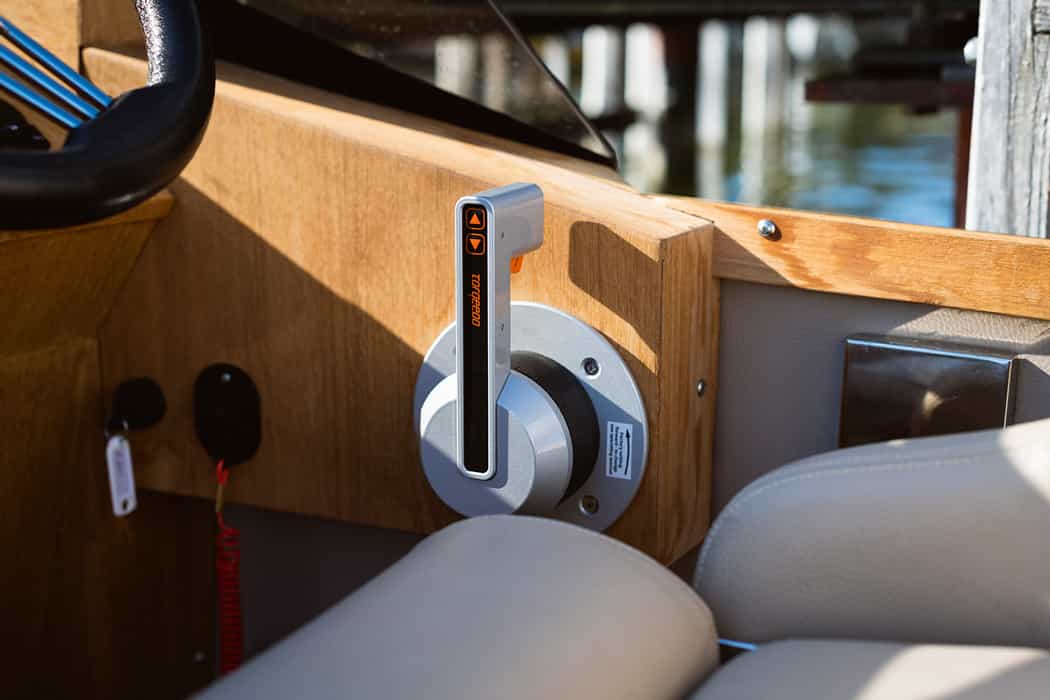

The elegantly designed dashboard with on-board computer gives you an overview of all important information at all times, such as the current capacity of the lithium-ion batteries. The MY-Elégance S is easy and intuitive to operate. The control panel at the helm allows you to use special functions such as remaining travel time, power consumption, speed, depth and temperature measurements.
The standard range is approximately 50 kilometers. So you can enjoy a whole day on the water without any worries. If you plan to travel longer distances, a larger battery for a range of up to 270 kilometers is available on request.
MY-Elegance S Customize
My-Elégance electric boats are made using a vacuum process from a fiberglass and PE honeycomb sandwich matrix. This results in a very stiff yet lightweight boat body that still has the strength properties of a conventional fiberglass laminate.
The My-Elégance is offered with the most modern, contemporary ecological construction. My-Electroboat uses flax fibers instead of glass fibers and in combination with 'green epoxy resin', weight advantages of approximately 20% can be achieved compared to conventional construction and resins.
Our design options are as individual as you are! You can customize all boats from My-Electroboat 100% individually according to RAL - from the color scheme of the boat to the upholstery: You decide what your dream electric boat should look like!
Introduction of the MY-Elegance S
Due to the current cookie settings, the Youtube video cannot be displayed.
Motorization of the MY-Elegance S
For the MY-Elegance S, electric motors with 20 kW, 50 kW, and 100 kW are recommended, each with different maximum speeds. KrÀutler's electric motors are combined with modern and lightweight lithium-ion batteries.
With the smallest motorization, speeds of up to 20 km/h are possible, and with the middle one, up to 50 km/h. With the strongest motorization, even up to 65 km/h is possible. The range varies depending on the battery used. We assume an economic speed of 10 km/h and a consumption of around 4 kW per hour. Depending on the equipment, a minimum range of 32 km is no problem.
Depending on preference and area of application, outboard, inboard, and rotatable pod motors can be used. Outboard motors are inexpensive to maintain and the boat can also be used in shallow water. Inboard motors are recommended for higher performance but are not suitable for shallow water due to their draft. Rotatable pod motors are the most agile of all motor types, but cannot be used in shallow water.
-
LED - Navigation lights, signal horn, battery monitor
-
Automatic underdeck ventilation, Electric bilge pump
-
Cockpit table, cushions
-
Anchor line with anchor
MY-Elegance S Additional Equipment
-
Color choice according to RAL, bow thruster for better maneuverability (recommended)
-
Refrigerator or drawer, seat heating, LED ambient lighting, LED underwater spotlight, sound system
-
Teak deck on cockpit floor and/or deck, cushions of choice on seating and lying area
-
Harbor cover, bimini, T-top, solar roof
-
Trailer, Electric Mover for Trailers
